Clips and Nails

As part of our full Roof System package, we provide a substantial range of fixings, from batten end clips to deep ridge screws, all to ensure a completely secure and weathertight roofing solution.
An image of the Batten End Clip from Marley

Batten End Clip

The innovative Batten End Clip has been designed to make it easier for roofers to install dry verges in accordance with the new British Standard. As well as introducing minimum performance criteria, the new British Standard states that dry verge products can no longer be installed just with a nail straight into the end grain of the batten. Instead, they must be clipped or screwed into place. The clip is designed to fit securely onto the end of the batten, with a robust metal plate for the dry verge to be fixed into, keeping the nail locked into place.

For more information and the opportunity to purchase online visit our Batten End Clip page.

SoloFix tile clips

A SoloFix tile clip is an integrated clip and nail that is quick and simple to install. The SoloFix tile clips are manufactured from Zial®, making them a strong and durable fixing. The one-piece clip and nail is available in options to suit all standard Marley interlocking tiles, with a 30% faster installation time than traditional clips. Visit our dedicated SoloFix one piece tile clips page for more information.


Image of SoloFix by Marley Ltd

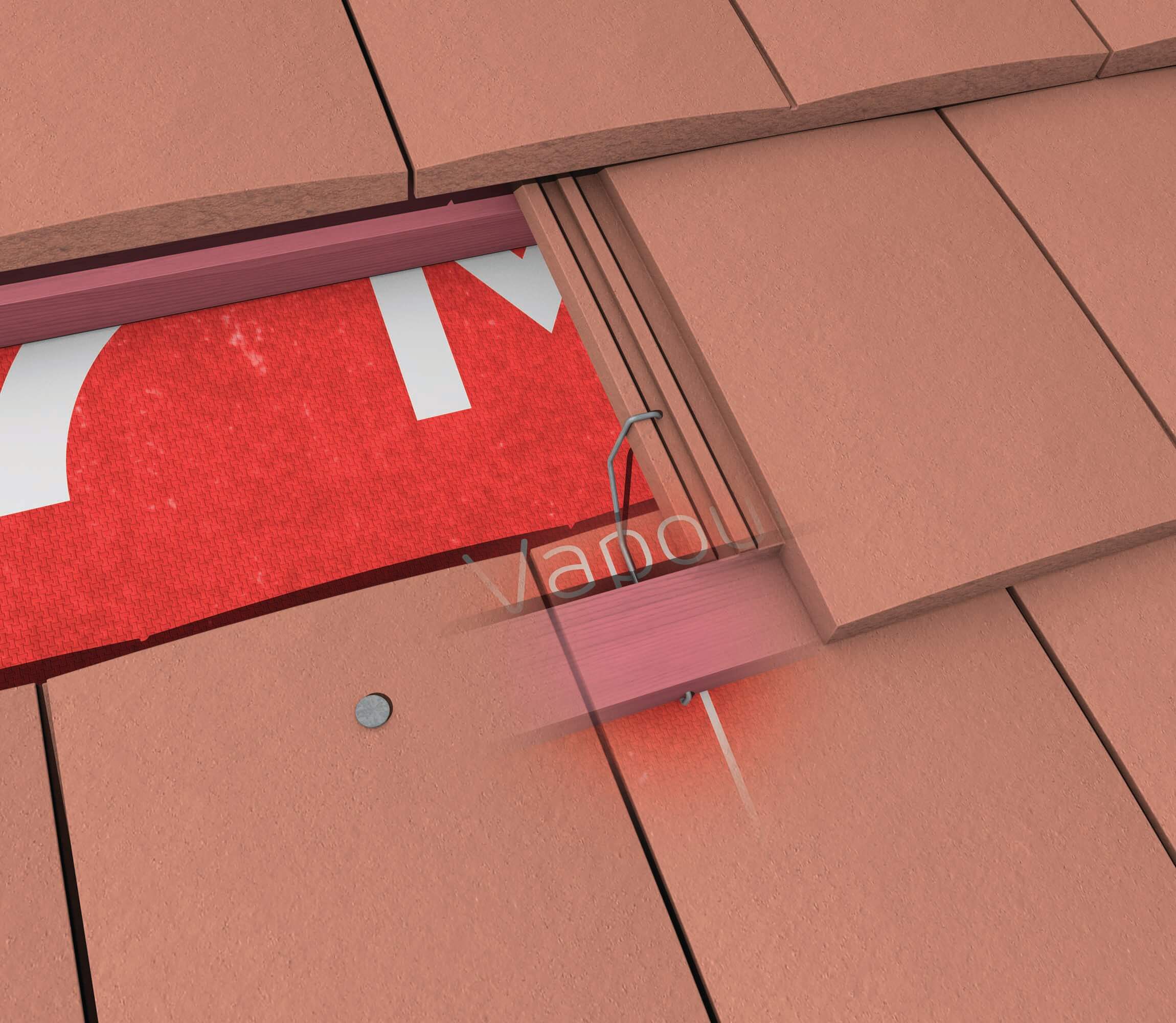

ashmore solo clip in situ

Ashmore SoloClip

The Ashmore SoloClip is designed to wrap around the battens, saving you time on site and helping to complete roof installations more quickly as it does not require any tools to fit.
It can only be used with 25 x 50mm battens.
The Ashmore SoloClip makes roof tile fixing quicker and easier, saving you time and money.

Visit our dedicated page for more information on the Ashmore SoloClip.


Zial coated: Zial® (Zinc-Aluminium) clips

Zial® clips are available for Wessex head clips and Mendip head clips. The Mendip head clips (as pictured) are available in packs of 250 and the Wessex head clips are available in packs of 50. These head clips are used to:

The benefits of the Zial coated: Zial® clips are they can be used in any location across the UK, including costal regions.

Image for Mendip head clip
Tile head clip

Tile head clip

These tile head clips are compatible with the majority of our Concrete Interlocking Tile range and they are available in packs of 20.

They are traditionally used to provide an additional fixing for when small tile cuts are needed in hips and valleys.

These clips are generally known as a "C Clip" and made from stainless steel.



Tile tail clip

These tile tail clips are compatible with the majority of our Concrete Interlocking Tile range and they are traditionally used to provide an additional fixing for when small tile cuts are needed in hips and valleys.

They are available in packs of 20 and made from Aluminum.



Image for Tile tail clip
Secret cut tile clip

Secret cut tile clips

Secret cut tile clips are used to provide a mechanic fixing for small cut tiles into valleys and hips. You can also use it as a option for a secondary mechanical fix where a SoloFix Clip can't be used.

They are available in packs of 50, and they can be used with the majority of our Concrete Interlocking and Clay Interlocking ranges.

The benefits of these clips are they're considered a mechanical fixing and easy to install.

Universal Eaves Clip

The variable height of the Universal Eaves Clip does not only allow you to adjust the height of the clip but it also has the flexibility to rotate to any specific roof pitch. As a result, it is compatible with many different Marley roof tiles including:



Visit the dedicated page for more information on the Universal Eaves Clip

Lincoln eaves clip

Aluminium eaves clips and nails

Aluminium eaves clips are available specific to some Marley tiles.

Lincoln has its own eaves clip (pictured); these are available as a pack of 100 to be ordered alongside eaves clip nails.

Packs of 100 Eaves clip nails are available for use with the Universal Eaves Clip and Lincoln Eaves Clip.

Other tiles have specific aluminium eaves clips that are available in our Aluminium eaves clip packs, which includes the quantities packaged together with the correct sized nail.

Aluminium verge clip packs

Aluminium verge clip packs are available to suit many Marley tiles.

The packs include 50 of the appropriate verge clips and nails, and there are packs for right-hand and left-hand verge applications.

Verge clip and nails image

100mm x 4.8mm deep ridge screw pack

These deep ridge screws are available in packs of 16 and they are used for installing the Universal RidgeFast System when being installed with our Clay Interlocking range. These deep ridge screw packs supersede the screws provided within the RidgeFast System.

They can also be used to assist with our Mortar Bedded Security Kits.

Image for deep ridge screw pack

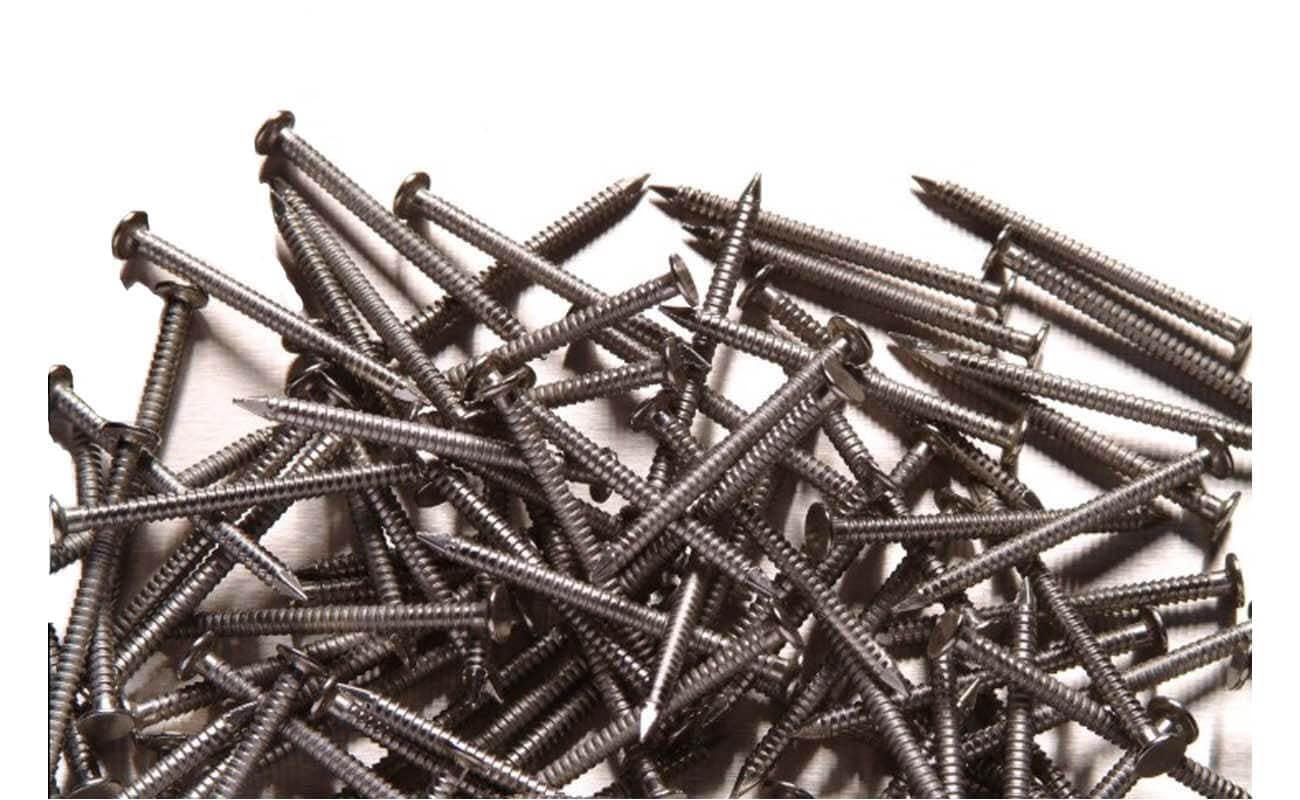

Image for Aluminium nail packs

Aluminium nail packs (500g)

Aluminium nail packs to provide a fixing for Marley Tiles when being installed.
