10mm Roof Eaves Vent System

  • Simple, fast installation
  • Wide rafter roll for lower pitched roofs with deeper insulation
  • Dry fix system
  • Allows clip fixing of tiles at eaves
  • Compresses insulation ensuring airflow
  • Prevents ponding of water
  • Prevents ingress of birds, vermin and insects
  • Meets BS 5534 requirements and NHBC guidelines


Marley Universal 10mm Roof Eaves Ventilation System is designed to provide continuous 10mm free vent areas to roof voids in an efficient and unobtrusive manner for roofs with a lower pitch and deeper insulation. Additionally, the system allows clip fixing of all tiles at the roof eaves, compresses insulation to ensure good air flow and will prevent ponding on the underlay behind the fascia board as well as ingress of all wildlife.

Note: Before commencing work, check that fascia or tilting fillet is fixed to correct height for type of tile and rafter pitch being used, taking into account height of over fascia ventilator and comb filler strip (if required).


Function & Compatibility

  • 10mm continuous ventilation at eaves
  • 10,000mm² free area of ventilation per linear metre
  • Eaves-to-ridge or eaves-to-eaves ventilation
  • Suitable for all Marley tiles and slates
  • Suitable for other manufacturers' tiles and slates

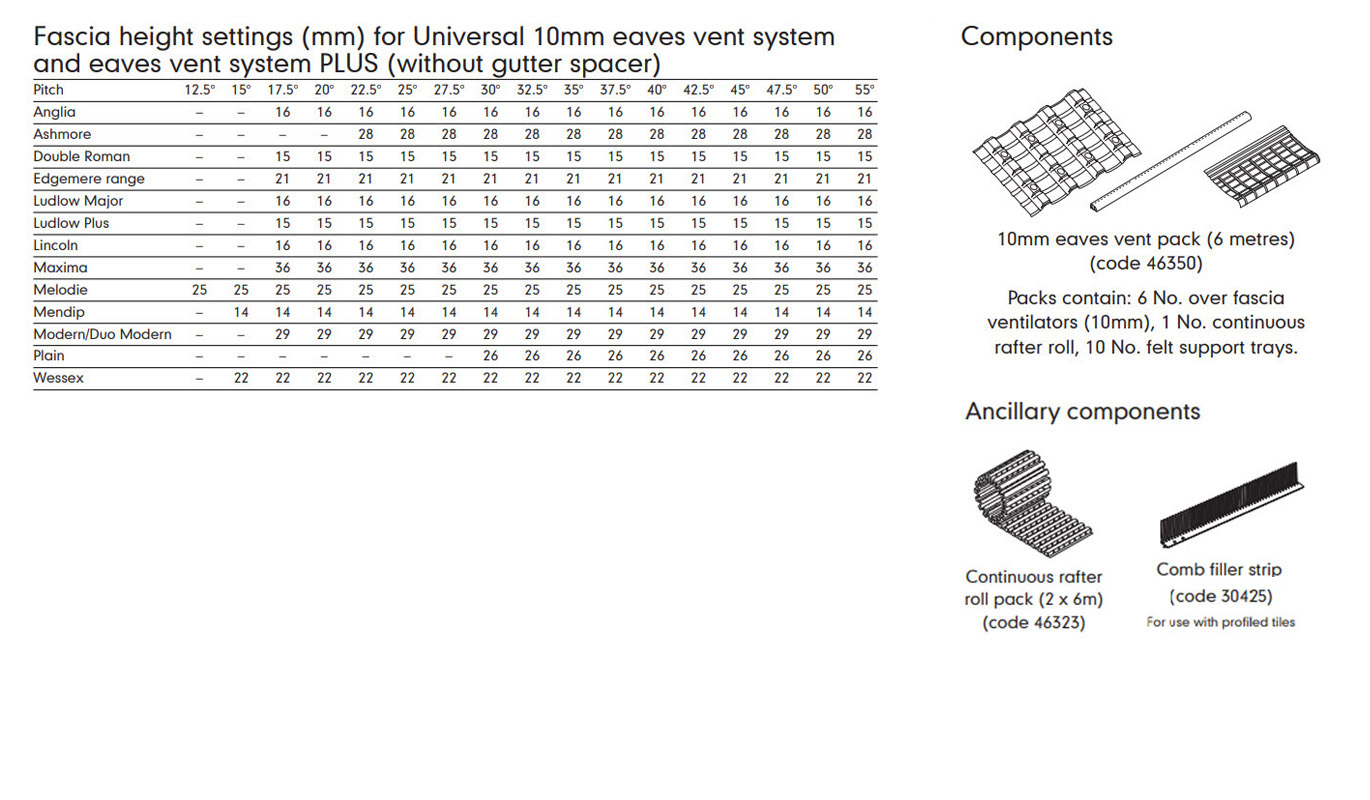

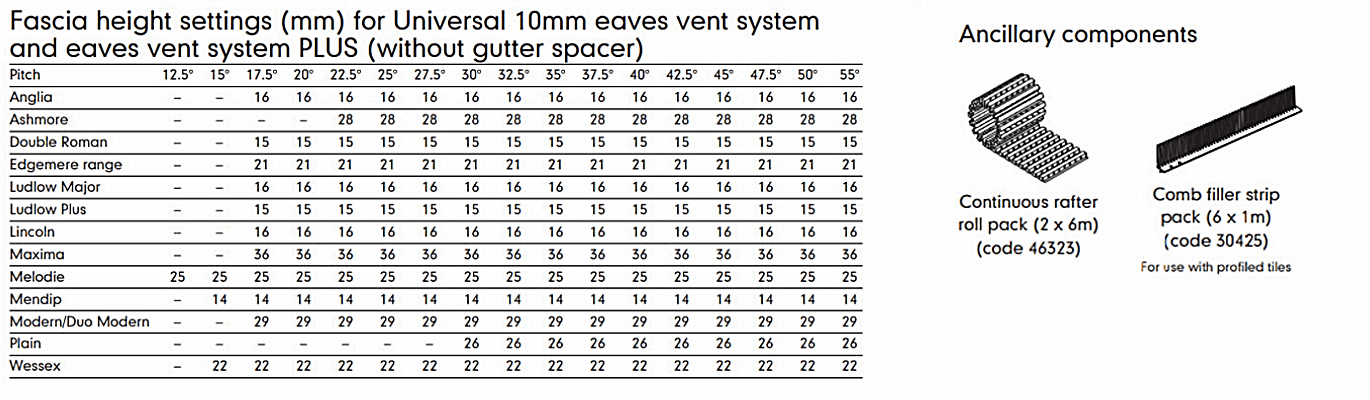

Technical Data
10mm Eaves Vent Kit
