Universal Dry Verge Roofing Systems



  • Dry Verge System meets BS 5534 requirements and NHBC guidelines
  • Drainage channels reduce the risk of gable end staining
  • Starter fixing brackets fast and secure installation
  • Unrivalled compatibility
  • Manufactured from high-grade polypropylene for outstanding durability
  • Simple and fast to install
  • Also suitable for verges without bargeboard
  • Dry verge refurbishment kit allows retro-fit

Description

Marley Universal Dry Verge provides a strong, weathertight and mortar-free verge solution for the majority of tiles within all three main interlocking types (large standard, medium format - 15 x 9" - and large format with a thin leading edge) regardless of manufacturer, as well as our Lincoln clay tiles.

Compliant with the requirements of BS 5534 as a means of mechanically fixing verge tiles, each verge unit is simple and fast to install and offers the stepped appearance of a traditional mortar bedded verge.


Function & Compatibility

  • Mechanically-fixed dry verge system
  • Suitable with large standard, medium format, large format thin leading edge and the Lincoln
  • Up to 55┬░ roof pitch
  • Provides durable weathertight verge finish
  • Don't forget our brand new batten end clip for all installations

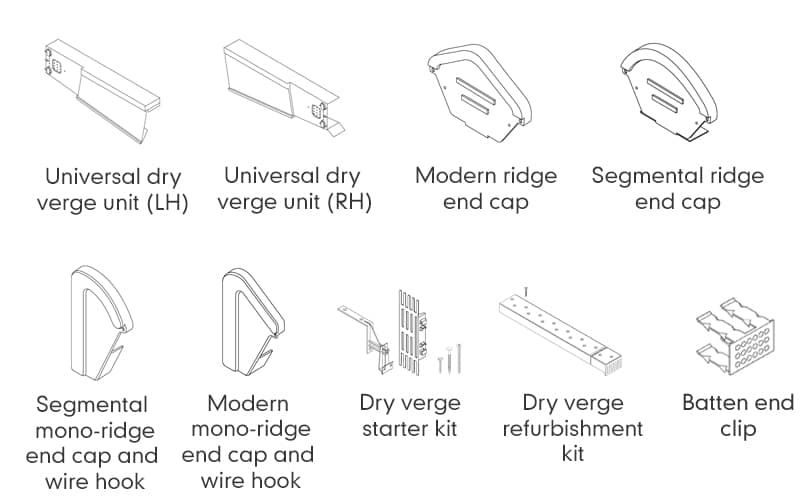

Components

All components sold separately
uni dry verge components

Universal Dry Verge starter kit contains:

2 No. Bracket assemblies | 2 No. Plastic filler units | 10 No. 30mm stainless steel screws | 4 No. 50 mm stainless steel screws |

Technical Data
  • For use with all large and medium standard format, large format thin leading edge and the Lincoln and Maxima clay interlocking pantiles
  • Tiles must be laid at 287mm (min) - 345mm (max) in accordance with specific tile gauge parameters
  • 12 - 55 degree pitch range
  • Not suitable for raking verge
  • Two starter units are included within each dry verge fixing kit
