Lincoln Clay Interlocking Profiled Tiles

An easy-to-fit traditional clay pantile with an open gauge design and a traditional s-curve profile with a thin leading edge.

12.5° minimum pitch available for certain applications, speak to our Technical Team for further information

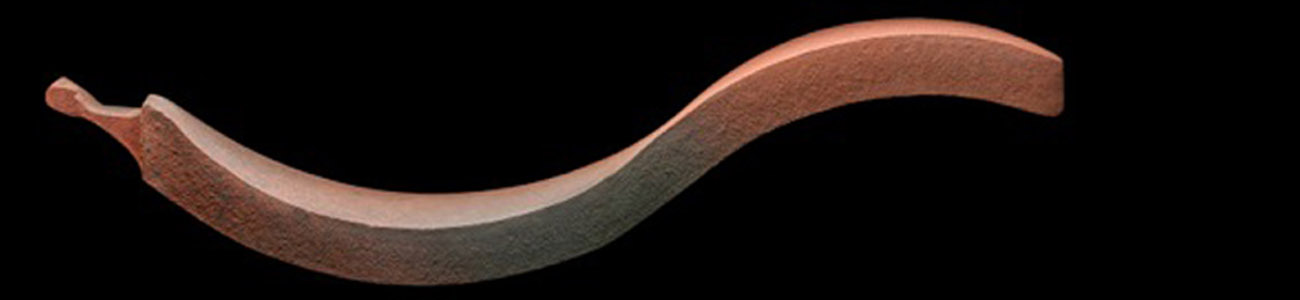

Traditional pantile profile
High coverage rate (less tiles per m²)
Compatible with Marley SolarTile®
Available with a wide range of fittings and accessories
Compatible with our full roof system
Open gauge design for quick and easy installation
15° Minimum pitch
Cost-effective affordable solution
Download our Spec Guide

Compatibility, functionality and beautiful aesthetics for the perfect finish across every roof style

Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.

Technical Data

Project Files
Save multiple files to a project and download in one handy file
Sign in to your account
Don't have an account Create one
35312300 Universal Facia Ventilated Eaves 10mm Cold Roof Title Block
60512300 Universal GRP Dry Valley Pitches 17 5 Title Block
35212300 Universal Facia Ventilated Eaves 25mm Warm Roof
44412300 Mortar Bedded Raking Verge RH Title Block
44412301 Mortar Bedded Raking Verge LH Title Block
44512300 Mortar Bedded Verge with Undercloak RH Title Block
44612300 Mortar Bedded Verge with Undercloak LH Title Block
51112300 Universal HipFast Dry Hip Title Block
56012300 Mortar Bedded Hip Security Fixing Title Block
56012301 Mortar Bedded Hip Security Hidden Fixing Title Block
67112300 Top Edge Abutment Lead Flashing Title Block
67512301 Top Edge Ventilated Abutment Title Block
78012300 Mortar Bedded Ridge Security Hidden Fixing Title Block
78012301 Mortar Bedded Ridge Security Fixing Title Block
79012300 Universal RidgeFast Dry Ventilated Ridge Title Block
Lincoln BIM object

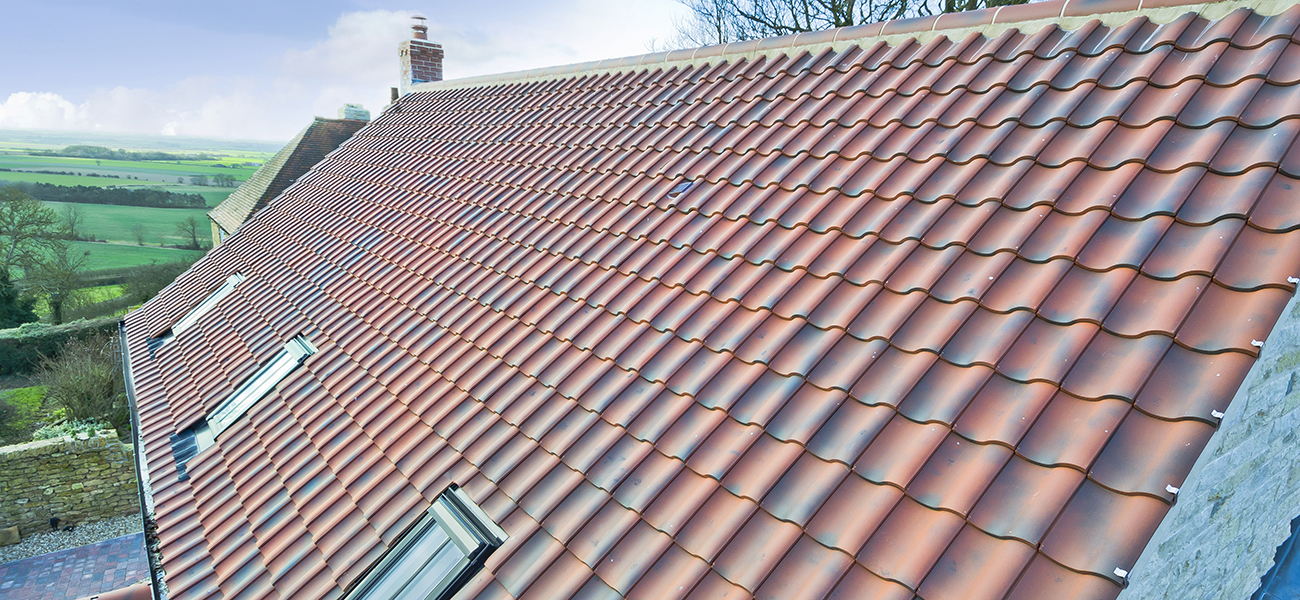

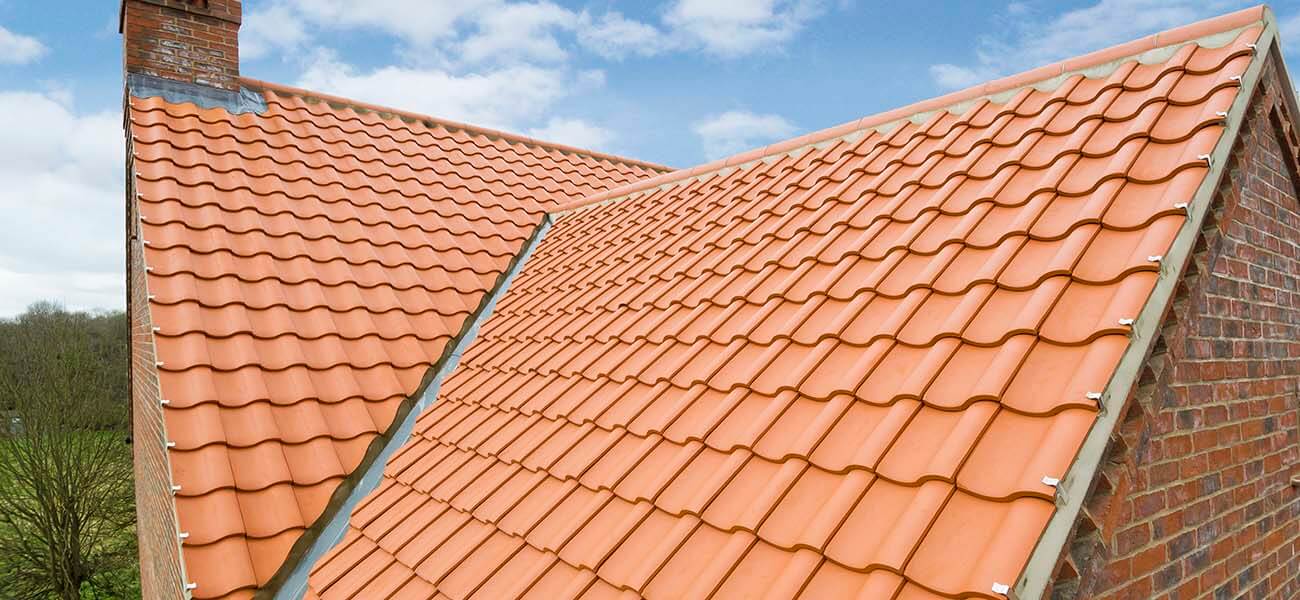

A traditional range of 1 colours, from the warmth of Natural Red to the weathered historic appearance of Rustic Red.

Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.

Request sample

Lincoln clay pantiles: traditional and robust

Lincoln Clay Pantiles combine a traditional appearance with the robust qualities you would expect from all Marley products.


Meeting the standard

Clay tiles must meet all the latest fixing requirements, and the Lincoln Clay Pantile is no different. They adhere the latest BS 5534 fixing requirements and the NHBC technical standards.

Lincoln clay pantiles are simple to install

These pantiles combine the elegance of natural clay roofs with the versatile and simple installation of the open gauge design and 12.5° minimum pitch.

Affordable solution

We combine the beauty and traditional appearance of natural clay with modern manufacturing techniques that ensure our clay tiles are more affordable than ever. A large range of complementary fittings and universal accessories makes these clay interlocking tiles the ideal choice for your next roofing project.

Technical specification

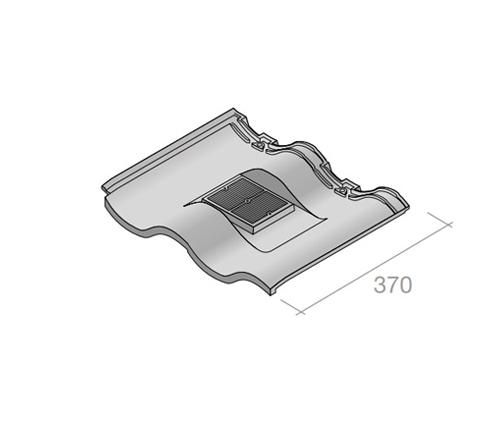

Size of Tile 370mm x 247mm
Minimum Pitch

12.5º at 100mm headlap*
22.5º at 75mm headlap

Maximum Pitch 70º
Minimum Headlap 75mm (minimum)
Cover Width 222mm (nominal)
Covering Capacity

15.3 tiles/m² at 75mm headlap
16.65 tiles/m² at 100mm headlap

Weight of Tiling 43.0 kg/m² at 75mm headlap (approx.)
46.79 kg/m² at 100mm headlap (approx.)
Battens Required 3.4 lin.m/m² at 75mm headlap (net)
3.7 lin.m/m² at 100mm headlap (net)
Batten Size Recommended 38 x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50 x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
Tile Nails 38mm x 3.35mm aluminium clout head
*Available for certain applications, speak to our Technical Team for further information
