Experiencing the vast variety of textures and colours that our Eden roof tiles provide up close, can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.
The newest, exciting addition to our classic clay range combines carefully considered design with a traditional feel and beautiful look of a clay pantile. Eden tiles take the hassle out of guesswork and intensive labour out of laying clay pantiles.

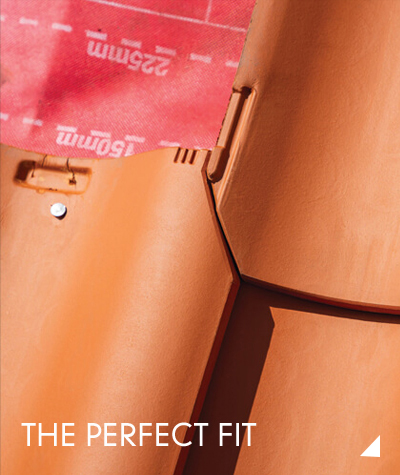

The low minimum pitch offers versatility and our tail clipping system offer an alternative to nailing for an easier fit and smoother appearance. New design features improve on the quirks of a classic pantile. Our flat back design stops significant rocking on battens and the stabilising nibs on the reverse of the tile allows for square stacking in a bundle, reducing transport damage and making bundles easier to lift to the roof.
Matt Timby - Timby Traditional Roofing
|Size of Tile||342mm x 247mm|
|Minimum Headlap||72mm (minimum)|
|Cover Width||215mm (nominal)|
|Weight of Tiling||40.42 kg/m² at 72mm headlap (approx.)
|Battens Required||3.7 lin.m/m² at 72mm headlap (net)
|Batten Size Recommended||38 x 25mm for rafters/supports not exceeding 450mm centres (fixed to BS 5534)
50 x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534)
|Tile Nails & Clips||45mm x 3.35mm aluminium clout head. Eden Solofix. Universal Eaves Clip. Lincoln verge clips|
