Wessex Interlocking Roof Tile

The low profile Wessex is at the forefront of low pitch performance: designed to shed water efficiently with clean, simple lines and a minimalist style

Marley products brochure Request Sample
A+ Environmental credentials (BREEAM)
Compatible with Marley SolarTile®
Excellent certification for BES 6001
Available with a wide range of fittings and accessories
Quality
15° Minimum pitch
Compatible with our full roof system
Download our Spec Guide

Compatibility, functionality and beautiful aesthetics for the perfect finish across every roof style

Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
Explore roof fittings

2 bold colours that complement the smooth finish and angular lines of the tiles profile.

Smooth Brown

Experiencing the vast variety of textures and colours that our roof tiles provide up close can guide you in the decision-making process when selecting roof coverings. Our efficient sample service can help you in this process.

Request sample
All of our concrete interlocking tiles can achieve an 'A+' rating (which has the lowest environmental impact) in the Building Research Establishment's Green Guide to Specification.

Accreditation to the BES 6001 framework standard for 'Responsible Sourcing' means that projects using our concrete interlocking slates can now achieve extra credits under BREEAM and the Home Quality Mark (HQM).

*Please note* The British Standard for Slating and Tiling (BS 5534) has recently been updated, making significant changes to tile fixing requirements.

Designed to shed water efficiently at pitches down to 15°, the Wessex interlocking tile has clean, simple lines and a pleasing minimalist style.

View product datasheet
Technical specification

Size of Tile 420mm x 330mm
Minimum Pitch 15°
Maximum Pitch 44°
Minimum Headlap 75mm
Maximum Gauge 345mm
Cover Width 298mm (nominal)
Covering Capacity

9.7 tiles/m2 at 75mm headlap
10.5 tiles/m2 at 100mm headlap
Weight of Tiling

50 kg/m2 (0.49kN/m2) at 75mm headlap
53 kg/m2 (0.52kN/m2) at 100mm headlap
Battens Required 2.9 lin.m/m2 at 75mm headlap
3.1 lin.m/m2 at 100mm headlap
Batten Size Recommended 38 x 25mm for rafters/supports not exceeding 450mm centres
50 x 25mm for rafters/supports not exceeding 600mm centres
Fixing Clip  Eaves, Verge and Tile Clips
Hanging Length 403mm
NB. The Wessex interlocking tile may exhibit superficial, non-continuous cracks on the interlocking channels, as a result of the manufacturing process. These do not affect the long term performance and durability of the Wessex interlocking tile.

The products are CE Marked and conform in all respects to the requirements of BS EN 490 ‘Concrete roofing tiles and fittings for roof covering and wall cladding — Product specifications’, when tested in accordance with BS EN 491 ‘Concrete roofing tiles and fittings for roof covering and wall cladding – Test methods’, including transverse strength, water impermeability and freeze/thaw cycles.


Technical Data

CAD Drawings BIM Files
Request a Fixing Specification, Estimator or NBS
Project Files
Save multiple files to a project and download in one handy file
Sign in to your account
Don't have an account Create one
35910635 10mm Open Ventilated Eaves
Download DWG
Download PDF
35310635 Fascia Ventilated Eaves 10mm Cold Roof
Download DWG
Download PDF
55810600 Mortar Bedded Hip 125 DEGREE Angle
Download DWG
Download PDF
56810600 Mortar Bedded Security Hip 125 DEGREE Angle
Download DWG
Download PDF
55910600 Mortar Bedded Hip 145 DEGREE Angle
Download DWG
Download PDF
56910600 Mortar Bedded Security Hip 145 DEGREE Angle
Download DWG
Download PDF
35210635 Fascia Ventilated Eaves 25mm Warm Roof
Download DWG
Download PDF
35710635 Soffit Ventilated Eaves 25mm Warm Roof
Download DWG
Download PDF
36010635 25mm Open Ventilated Eaves
Download DWG
Download PDF
36510635 Unventilated Eaves Cold Roof
Download DWG
Download PDF
36610635 Unventilated Eaves Warm Roof
Download DWG
Download PDF
37510600 Unventilated Raking Eaves LH
Download DWG
Download PDF
37610600 Unventilated Raking Eaves RH
Download DWG
Download PDF
41110600 Universal Dry Verge to Bargeboard LH
Download DWG
Download PDF
41210600 Universal Dry Verge to Bargeboard RH
Download DWG
Download PDF
41310600 Universal Dry Verge to Brickwork LH
Download DWG
Download PDF
41410600 Universal Dry Verge to Brickwork RH
Download DWG
Download PDF
44310600 Mortar Bedded Raking Verge with Bedded Fibre Cement Undercloak LH
Download DWG
Download PDF
44410600 Mortar Bedded Raking Verge with Bedded Fibre Cement Undercloak RH
Download DWG
Download PDF
44510600 Mortar Bedded Verge with Bedded Fibre Cement Undercloak LH
Download DWG
Download PDF
44610600 Mortar Bedded Verge with Bedded Fibre Cement Undercloak RH
Download DWG
Download PDF
45310600 Mortar Bedded Raking Verge with Nailed Fibre Cement Undercloak LH
Download DWG
Download PDF
45410600 Mortar Bedded Raking Verge with Nailed Fibre Cement Undercloak RH
Download DWG
Download PDF
45510600 Mortar Bedded Verge with Nailed Fibre Cement Undercloak LH
Download DWG
Download PDF
45610600 Mortar Bedded Verge with Nailed Fibre Cement Undercloak RH
Download DWG
Download PDF

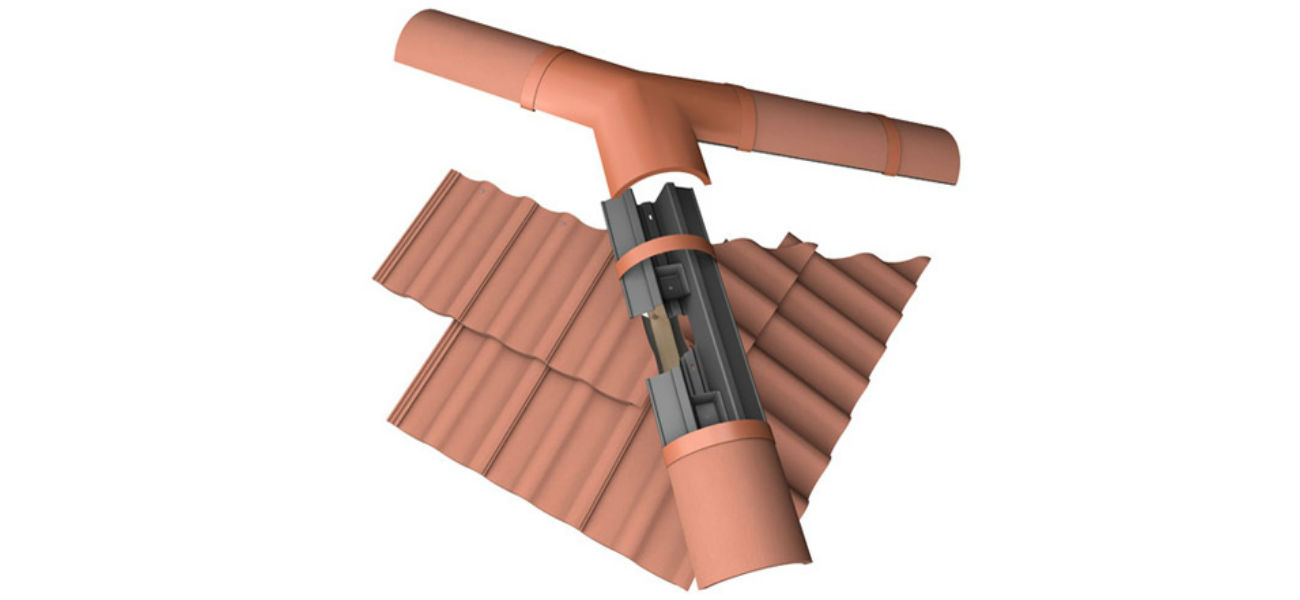

50610600 Dry Hip System Modern
Download DWG
Download PDF
50710600 Dry Hip System Third Round
Download DWG
Download PDF
51010600 HipFast Dry Hip Modern
Download DWG
Download PDF
51110600 HipFast Dry Hip Third Round
Download DWG
Download PDF
55010600 Mortar Bedded Hip Segmental
Download DWG
Download PDF
55110600 Mortar Bedded Hip Modern
Download DWG
Download PDF
56010600 Mortar Bedded Security Hip Segmental
Download DWG
Download PDF
56110600 Mortar Bedded Security Hip Modern
Download DWG
Download PDF
57610600 Small Scale Mortar Bedded Hip Pascoll Roll
Download DWG
Download PDF
60610600 GRP Dry Valley High Profile
Download DWG
Download PDF
61510600 Lead Valley
Download DWG
Download PDF
69010640 Roof Window
Download DWG
Download PDF
70010640 Dry Ventilated Ridge Segmental
Download DWG
Download PDF
71110640 Dry Unventilated Ridge Modern
Download DWG
Download PDF
77010630 Dry Ventilated Mono Ridge Segmental
Download DWG
Download PDF
78010630 Mortar Bedded Mono Ridge Segmental
Download DWG
Download PDF
78110630 Mortar Bedded Mono Ridge Modern
Download DWG
Download PDF
79010640 RidgeFast Dry Ventilated Ridge Segmental
Download DWG
Download PDF
79110640 RidgeFast Dry Ventilated Ridge Modern
Download DWG
Download PDF
80110640 Mansard Tiling Above Change of Pitch
Download DWG
Download PDF
80210640 Mansard Tiling Below Change of Pitch
Download DWG
Download PDF
80510635 Sprocket Tiling Above Change of Pitch
Download DWG
Download PDF
80610635 Sprocket Tiling Below Change of Pitch
Download DWG
Download PDF
82010600 Lead Expansion Joint
Download DWG
Download PDF
83010630 Roof Slope Ventilator Universal Tile Vent Terminal Cold Roof
Download DWG
Download PDF
83110630 Roof Slope Ventilator Universal Tile Vent Terminal Warm Roof
Download DWG
Download PDF
83210630 Roof Slope Terminal Universal Tile Vent Terminal
Download DWG
Download PDF
84110630 Roof Slope Ventilator Tile Vent Cold Roof
Download DWG
Download PDF

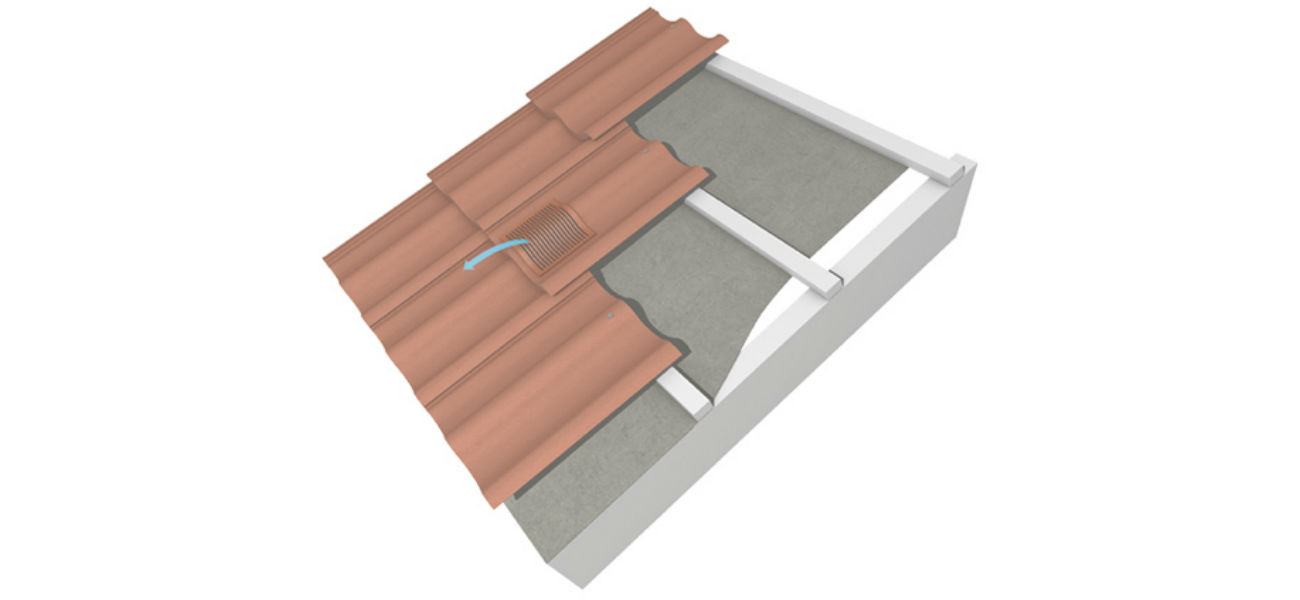

84210630 Roof Slope Ventilator Contour Vent Cold Roof
Download DWG
Download PDF
84610630 Roof Slope Ventilator Tile Vent Warm Roof
Download DWG
Download PDF
84710630 Roof Slope Ventilator Contour Vent Warm Roof
Download DWG
Download PDF
85110630 Roof Slope Terminals Tile Vent Cold Roof
Download DWG
Download PDF
85210630 Roof Slope Terminals Contour Vent
Download DWG
Download PDF
85510640 Ridge Terminals Extract Ventilation Dry Fix
Download DWG
Download PDF
85710640 Ridge Terminals Gas Ventilation Dry Fix
Download DWG
Download PDF
86110640 Ridge Terminals Warm Roof Ventilation Mortar Bedded
Download DWG
Download PDF
86210640 Ridge Extract Ventilation Mortar Bedded
Download DWG
Download PDF
86410640 Ridge Gas Ventilation Mortar Bedded
Download DWG
Download PDF
87010635 Snowguards
Download DWG
Download PDF
Wessex BIM object
Download ZIP

Add products to your specs with just one click

The new NBS 'Add to spec' button makes it quick and easy to add our products straight into your specifications with full details and technical properties. Just click the ‘Add to spec’ button opposite to get started.

NBS source partner logo
Add to spec
