Ludlow Major

A simple concrete interlocking tile with strong lines enhancing the contrast between light and shade. The popular profile is used across a wide range of developments and ideal for refurbishment projects.

22.5Ā° minimum pitch available for smooth finish tiles; granular finish tiles have a higher minimum pitch requirement

Marley products brochure Request Sample
A+ Environmental credentials (BREEAM)
Compatible with Marley SolarTile®
Excellent certification for BES 6001
Available with a wide range of fittings and accessories
Compatible with our full roof system
Wide variety of colours available
22.5° Minimum pitch
Cost-effective affordable solution
Download our Spec Guide

Compatibility, functionality and beautiful aesthetics for the perfect finish across every roof style

Our extensive range of roof fittings and accessories work with all elements of the full Marley Roof System, ensuring product specification and installation is quicker and easier. What's more, a complete Marley Roof System comes with a 15 year guarantee for further security and peace of mind. Take a look at our full range of roof fittings and accessories.
Explore roof fittings

A diverse range of 7 colours, all of which popular throughout different parts of the UK, make choosing the right product for your roof that little bit easier.

Antique Brown

Experiencing the vast variety of textures and colours that our roof tiles provide up close, can guide you in the decision making process when selecting roof coverings. Our efficient sample service can help you in this process.

Request sample

The popular Ludlow Major profile can achieve an A+ rating in the BRE Green Guide to Specification. In addition, compliance with the BES 6001 framework standard for Responsible Sourcing means that projects using Ludlow Major tiles can achieve extra credits under the BREEAM family of environmental assessment schemes.

View product datasheet

Ludlow Major is available for both smooth and granular finishes, with a diverse colour range that allows it's specification for a vast array of environments and roofing developments.

Technical specification
Size of Tile
420mm x 330mm
Minimum Pitch

25° Smooth (75mm headlap)  22.5° Smooth (100mm headlap)

30° Granular (75mm headlap)

Maximum Pitch
90°

Minimum Headlap
75mm (pitch and surface dependent)

Maximum Gauge
345mm

Cover Width
295mm (nominal)

Covering Capacity
9.8 tiles /m² at 75mm headlap
10.6 tiles /m² at 100mm headlap

Weight of Tiling

45kg/m² (0.44 Kn/m²) at 75mm headlap
49kg/m² (0.48 Kn/m²) at 100mm headlap


Battens
Required

2.9 lin.m/m² at 75mm headlap
3.1 lin.m/m² at 100mm headlap

Batten Size Recommended
38 x 25mm for rafters/supports not exceeding 450mm centres
50 x 25mm for rafters/supports not exceeding 600mm centres

Tile Nails
55mm x 3.35mm



Fixing Clips

 Eaves, Verge and Tile Clips

Hanging length
399mm (nominal)


Technical Data

CAD Drawings BIM Files
Request a Fixing Specification, Estimator or NBS
Project Files
Save multiple files to a project and download in one handy file
Sign in to your account
Don't have an account Create one
35810535 Soffit Ventilated Eaves 10mm Cold Roof
Download DWG
Download PDF
35310535 Fascia Ventilated Eaves 10mm Cold Roof
Download DWG
Download PDF
35910535 10mm Open Ventilated Eaves
Download DWG
Download PDF
35210535 Fascia Ventilated Eaves 25mm Warm Roof
Download DWG
Download PDF
35710535 Soffit Ventilated Eaves 25mm Warm Roof
Download DWG
Download PDF
36010535 25mm Open Ventilated Eaves
Download DWG
Download PDF
36510535 Unventilated Eaves Cold Roof
Download DWG
Download PDF
36610535 Unventilated Eaves Warm Roof
Download DWG
Download PDF
37510500 Unventilated Raking Eaves LH
Download DWG
Download PDF
37610500 Unventilated Raking Eaves RH
Download DWG
Download PDF
41110500 Universal Dry Verge to Bargeboard LH
Download DWG
Download PDF
41210500 Universal Dry Verge to Bargeboard RH
Download DWG
Download PDF
41310500 Universal Dry Verge to Brickwork LH
Download DWG
Download PDF
41410500 Universal Dry Verge to Brickwork RH
Download DWG
Download PDF
44310500 Mortar Bedded Raking Verge with Bedded Fibre Cement Undercloak LH
Download DWG
Download PDF
44410500 Mortar Bedded Raking Verge with Bedded Fibre Cement Undercloak RH
Download DWG
Download PDF
44510500 Mortar Bedded Verge with Bedded Fibre Cement Undercloak LH
Download DWG
Download PDF
44610500 Mortar Bedded Verge with Bedded Fibre Cement Undercloak RH
Download DWG
Download PDF
45310500 Mortar Bedded Raking Verge with Nailed Fibre Cement Undercloak LH
Download DWG
Download PDF
45410500 Mortar Bedded Raking Verge with Nailed Fibre Cement Undercloak RH
Download DWG
Download PDF
45510500 Mortar Bedded Verge with Nailed Fibre Cement Undercloak LH
Download DWG
Download PDF
45610500 Mortar Bedded Verge with Nailed Fibre Cement Undercloak RH
Download DWG
Download PDF
50610500 Dry Hip System Modern
Download DWG
Download PDF
50710500 Dry Hip System Third Round
Download DWG
Download PDF
51010500 HipFast Dry Hip Modern
Download DWG
Download PDF
51110500 HipFast Dry Hip Third Round
Download DWG
Download PDF
55010500 Mortar Bedded Hip Segmental
Download DWG
Download PDF
55110500 Mortar Bedded Hip Modern
Download DWG
Download PDF
55610500 Mortar Bedded Hip Third Round
Download DWG
Download PDF
57510500 Small Scale Mortar Bedded Hip Half Round
Download DWG
Download PDF
60610500 GRP Dry Valley High Profile
Download DWG
Download PDF
61510500 Lead Valley
Download DWG
Download PDF
66010500 Side Abutment Step and Cover Flashing
Download DWG
Download PDF
66510540 Lead Back Gutter
Download DWG
Download PDF
67010535 Top Edge Abutment Lead Flashing
Download DWG
Download PDF
67510535 Top Edge Ventilated Abutment
Download DWG
Download PDF
69010540 Roof Window
Download DWG
Download PDF
70010540 Dry Ventilated Ridge Segmental
Download DWG
Download PDF
70110540 Dry Ventilated Ridge Modern
Download DWG
Download PDF
74110540 Mortar Bedded Ridge Modern
Download DWG
Download PDF
76010540 Small Scale Mortar Bedded Ridge Half Round
Download DWG
Download PDF
77010530 Dry Ventilated Mono Ridge Segmental
Download DWG
Download PDF
78010530 Mortar Bedded Mono Ridge Segmental
Download DWG
Download PDF
78110530 Mortar Bedded Mono Ridge Modern
Download DWG
Download PDF
79010540 RidgeFast Dry Ventilated Ridge Segmental
Download DWG
Download PDF
79110540 RidgeFast Dry Ventilated Ridge Modern
Download DWG
Download PDF
80010535 Change of Roof Pitch
Download DWG
Download PDF
80110540 Mansard Tiling Above Change of Pitch
Download DWG
Download PDF
80210540 Mansard Tiling Below Change of Pitch
Download DWG
Download PDF
80510535 Sprocket Tiling Above Change of Pitch
Download DWG
Download PDF
80610535 Sprocket Tiling Below Change of Pitch
Download DWG
Download PDF
82010500 Lead Expansion Joint
Download DWG
Download PDF
83010530 Roof Slope Ventilator Universal Tile Vent Terminal Cold Roof
Download DWG
Download PDF
83110530 Roof Slope Ventilator Universal Tile Vent Terminal Warm Roof
Download DWG
Download PDF
83210530 Roof Slope Terminal Universal Tile Vent Terminal
Download DWG
Download PDF
84110530 Roof Slope Ventilator Tile Vent Cold Roof
Download DWG
Download PDF
84210535 Roof Slope Vents Contour Vents Cold Roof
Download DWG
Download PDF
84610530 Roof Slope Ventilator Tile Vent Warm Roof
Download DWG
Download PDF
84710535 Roof Slope Vents Contour Vent Warm Roof
Download DWG
Download PDF
85110530 Roof Slope Terminals Tile Vent
Download DWG
Download PDF
85210535 Roof Slope Terminals Contour Vents
Download DWG
Download PDF
85510540 Ridge Terminals Extract Ventilation Dry Fix
Download DWG
Download PDF
85710540 Ridge Terminals Gas Ventilation Dry Fix
Download DWG
Download PDF
86010540 Cold Roof Ventilation Mortar Bedded
Download DWG
Download PDF
86110540 Warm Roof Ventilation Mortar Bedded
Download DWG
Download PDF
86210540 Extract Ventilation Mortar Bedded
Download DWG
Download PDF
86410540 Gas Ventilation Mortar Bedded
Download DWG
Download PDF
87010535 Snow Guards
Download DWG
Download PDF
Ludlow Major BIM object
Download ZIP

Interested in a Ludlow Major profile whilst improving air quality?

Learn more about our EcoLogic Ludlow Major Tile! This made-to-order tile is truly one of a kind. Designed with a special titanium dioxide coating, the EcoLogic tile actively absorbs dangerous nitrogen oxide (NOx), a harmful pollutant in the air. In both its forms - nitrogen oxide (NO2) and nitric oxide (NO) - it continues to blight areas of the UK which fail to meet emissions targets, caused in large by traffic pollution.

Emissions that exceed government air quality targets can lead to increased risk of respiratory and lung problems, as well as contributing to breathing problems for people with asthma. The emissions also contribute to climate change.

A roof fitted with EcoLogic tiles can absorb up to the equivalent of 100,000 car miles worth of NOx emissions over its 20 year lifetime.

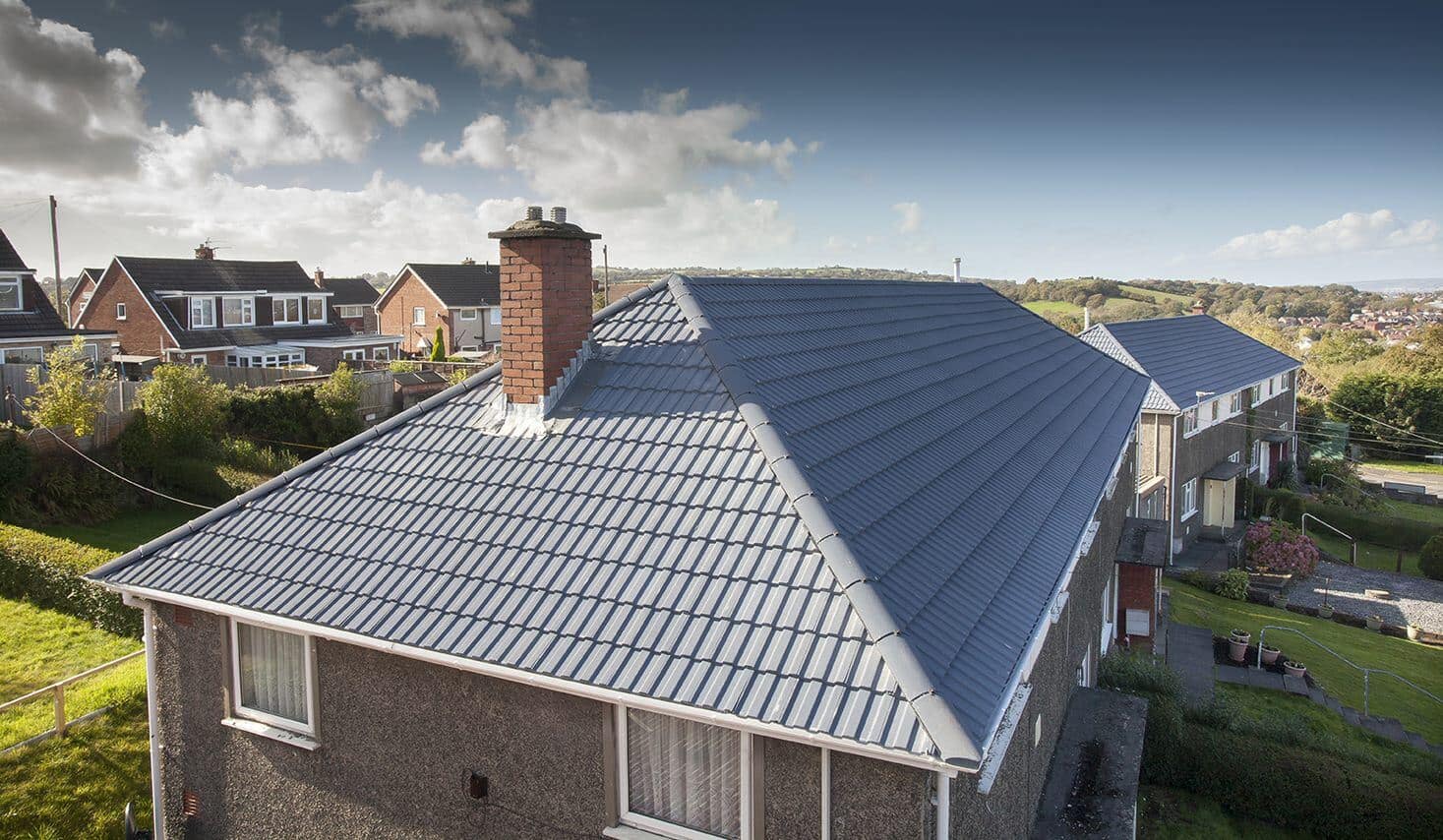

House featuring Ecologic Ludlow Major from Marley
